NBJ-18S Top Press Type Freeze Dryer

Brand:NANBEI<br> Model:NBJ-18S Top Press Type Freeze Dryer<br> Application:Laboratory,School,Hospital

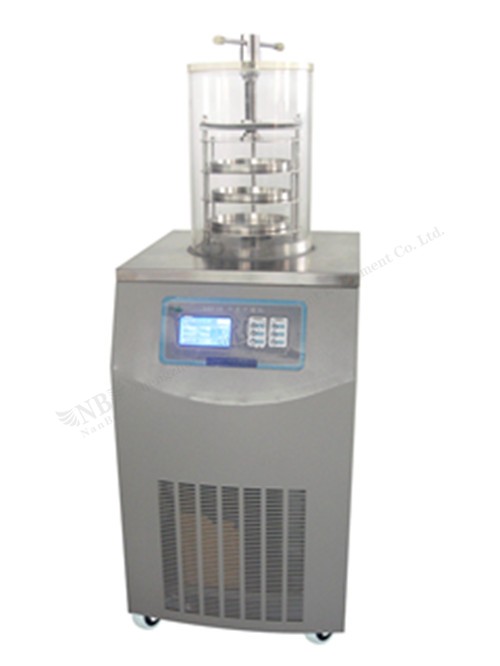

    NBJ-18S top press type freeze dryer

    Introduce about freeze dryer:

    NBJ-18S vertical freeze dryer is suitable for experiment in laboratory. This machine has heating shelves and programmable function.

    Main features about freeze dryer:

    * CFC Free refrigeration

    * Big opening condenser has pre-freeze function

    * low noise compressor, good efficiency,long service life

    * Condenser and operation panel are all stainless steel

    * Small volume , easy and convenient operation

    * Nitrogen valve is optional

    * Eutectic point test device is optional

    * Communication interface is available

    * Cascade refrigeration is optional for -80 device

    * LCD displays sample temperature curve, condenser temp.curve, shelf temp. Curve,    vacuum degree curve and compound curves.

    * 16 programs can be stored, and each program can be set up 32 segments

    * Program can be altered during running process, final drying curves stored

    * Electrical system uses PID control, more precise control

    * RS232 interface adopted, connecting with computer to display real-time drying curves

    Technical Parameter (NBJ-18S top press type ):

    Freeze drying area

    0.09



    Condenser capacity

    6kg /24h

    Condenser temperature

     -55℃ (-80 ℃ optional )

    Vacuum degree

    < 10 Pa

    Material tray

               Ф200mm, 3 layers

    Bulk capacity

    0.9 L, 10mm thickness

    Vial capacity Φ12mm

    990 pcs

    Vial capacity Φ16mm

    555 pcs

    Vial capacity Φ22mm

    270 pcs

    Style of press

    By hand

    Cooling

    Airdraughty, ambient temperature≤25℃

    Voltage

    220V, 50Hz

    Power

     1530W

    Host dimension

    610x540x(963+445)mm

    Host weight

    107 kg

    Remark: This product is for civilian use only
