NBJ-30F Top Press Freeze Dryers

Brand:NANBEI<br> Model:NBJ-30F Top Press Freeze Dryers<br> Application:Laboratory,School,Hospital

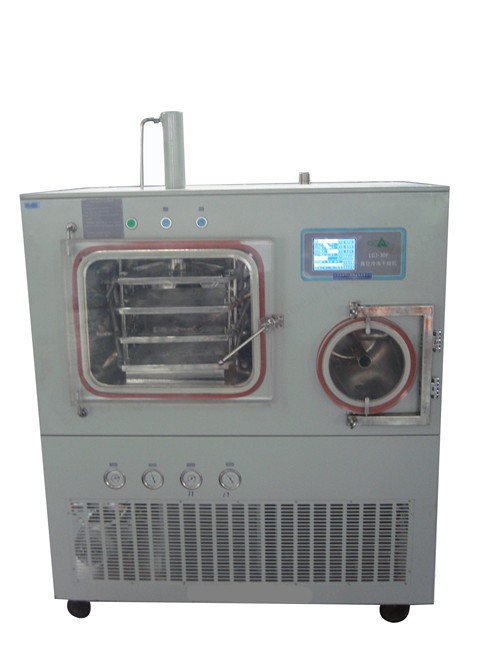

    NBJ-30F Vacuum Freeze Dryer with stopper

    Introduction about freeze dryer:

    NBJ-30F Freeze Dryer is suitable for pilot scale ,small scale production.

    This series is one of our patent products.This series of dryers have heating shelf, freezing and drying process are finished in same place.

    It changes the traditional complicated operation and prevents the product from pollution.

    Main Features:

    * With heating shelf and PID control standard, with programmable function

    * With organic glass observation window, whole process is easy to see

    * The shelf temperature accuracy is  1

    * Silicon oil fills hollow shelves, with most uniform shelf temp.,consistent and repeatable drying

    * Big touch screen LCD display drying curves

    * Interal surface of rectangular chamber and product tray are constructed of stainless steel

    * Air-let-in valve with nitrogen is available

    * Eutectic point test device is optional

    * PC software is optional to achieve remote control

    Technical Parameter:

    Freeze drying area

    0.306

    Condenser capacity

    6 kg/24h

    Condenser temperature

    Min.-70

    Vacuum degree

    10 Pa

    Shelf temperature

    -50----+70

    Shelf layers

    3+1 layers; 70mm spacing

    Shelf size

                    300x340x20 mm

    Bulk capacity

    3L, 10mm thickness

    Vial capacity Φ12mm

    1950 pcs

    Vial capacity Φ16mm

    1080 pcs

    Vial capacity Φ22mm

    546 pcs

    Electric defrosting

    Available

    Style of press

    Hydraulic

    Cooling

    Air, draughty, ambient   temperature25

    Voltage

    380V, 50Hz

    Dimension

    1280x900x1630 mm

    Weight

    400 kg

    Power

    4 KW

    Remark: This product is for civilian use only
