Brand:NANBEI
Model:NBJ-18S Manifold Type Freeze Dryer
Application:Laboratory,School,Hospital

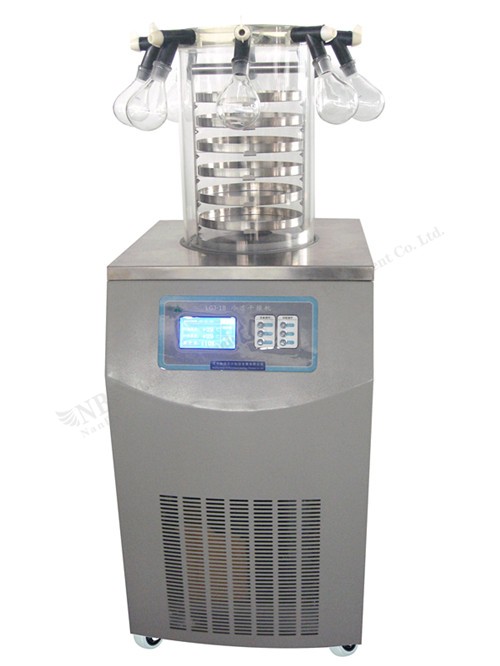

NBJ-18S Freeze Dryer ( manifold type )
Introduction about Freeze Dryer:
NBJ-18S vertical freezing dryer is suitable for experiment in laboratory and a small amount production.
This machine has heating shelves and programmable function.
Main features:
* CFC Free refrigeration
* Big opening condenser has pre-freeze function
* low noise compressor, good efficiency,long service life
* Condenser and operation panel are all stainless steel
* Nitrogen valve is optional
* Eutectic point test device is optional
* Communication interface is available
* Cascade refrigeration is optional for -80℃ device
* LCD displays sample temperature curve, condenser temp.curve, shelf temp. Curve, vacuum degree curve and compound curves.
* 16 programs ca be stored, and each program can be set up 32 segments
* Program can be altered during running process, final drying curves stored
* Electrical system uses PID control, more precise control
* RS232 interface adopted, connecting with computer to display real-time drying curves
Technical Parameter:
Model |
NBJ-18S manifold type |
|
|
Freeze drying area |
0.18 ㎡ |
0.27 ㎡ |
|
Condenser capacity |
6 kg /24h |
6 kg /24h |
|
Condenser temperature |
-55℃ (-80 ℃ optional ) |
-55℃ (-80 ℃ optional ) |
|
Vacuum degree |
< 10 Pa |
< 10 Pa |
|
Material tray |
Ф240mm , 4 layers |
Ф240mm , 6 layers |
|
Bulk capacity |
1.8 L, 10mm thickness |
2.7 L, 10mm thickness |
|
Vial capacity Φ12mm |
1320 pcs |
1980 pcs |
|
Vial capacity Φ16mm |
740 pcs |
1110 pcs |
|
Vial capacity Φ22mm |
360 pcs |
540 pcs |
|
Manifold |
with 8 ports |
||
Flask |
1000ml,500ml ,250ml ,100ml |
||
Cooling |
Air, draughty, ambient temperature≤25℃ |
||
Voltage |
220V, 50Hz |
||
Power |
1600W |
||
Host dimension |
610×540×(963+465) mm |
||
Host weight |
107 kg |
