Brand:NANBEI
Model:production freeze dryer
Application:Laboratory,School,Hospital

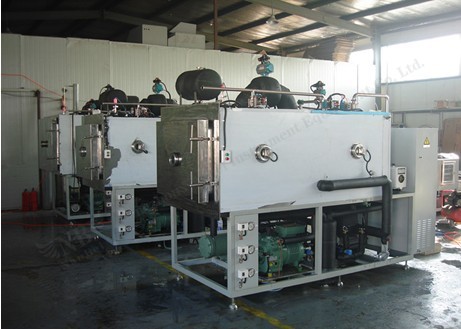

GZLY Series Vacuum Freeze Dryer
Freeze Dryer Model |
GZLY-2 |
GZLY-3 |
GZLY-4 |
GZLY-5 |
GZLY-8 |
GZLY-10 |
GZLY-15 |
GZLY-20 |
GZLY-25 |
GZLY-30 |
GZLY-40 |
||||
Nominal area(㎡) |
2 |
3 |
4 |
5 |
8 |
10 |
15 |
20 |
25 |
30 |
40 |
||||
Capacity |
Shelf area |
m2 |
1.98 |
2.96 |
4.4 |
5.5 |
7.75 |
10.33 |
14.76 |
20.63 |
24.38 |
29.7 |
40.5 |
||
Condenser capacity |
kg/batch |
25 |
40 |
60 |
80 |
120 |
210 |
290 |
410 |
480 |
590 |
800 |
|||
Vials |
ф22mm |
pcs |
3600 |
5300 |
8000 |
12700 |
17800 |
23700 |
33900 |
47400 |
56000 |
68300 |
93000 |
||
ф16mm |
pcs |
9800 |
10000 |
15000 |
24800 |
34800 |
46400 |
66400 |
92800 |
109700 |
133600 |
182200 |
|||
ф12mm |
pcs |
12600 |
16000 |
28000 |
35000 |
49000 |
65300 |
95700 |
130400 |
154000 |
187700 |
256000 |
|||
Bulk capacity |
L |
20 |
40 |
60 |
80 |
120 |
210 |
300 |
450 |
500 |
600 |
850 |
|||
Basic parameter |
Shelf size |
L |
mm |
610 |
610 |
915 |
915 |
915 |
1215 |
1215 |
1250 |
1250 |
1500 |
1500 |
|
W |
mm |
810 |
810 |
1210 |
1210 |
1210 |
1215 |
1215 |
1500 |
1500 |
1800 |
1800 |
|||
Shelf spacing |
mm |
100 |
100-120 |
||||||||||||
Shelf numbers |
layers |
4+1 |
6+1 |
4+1 |
5+1 |
7+1 |
7+1 |
10+1 |
11+1 |
13+1 |
11+1 |
15+1 |
|||
Shelf Max.Temp |
℃ |
+70 |
|||||||||||||
Shelf Min.Temp |
℃ |
<-50 |
|||||||||||||
Shelf temp.accuracy |
℃ |
±1 |
|||||||||||||
Condenser Min.temp. |
℃ |
<-70 |
|||||||||||||
Final vacuum |
Pa |
<10 |
|||||||||||||
Basic configuration |
Cooling water consumption <30℃ |
m³/h |
4.2 |
4.5 |
6 |
11 |
16 |
20 |
27 |
30 |
33 |
36 |
42 |
||
Cooling style |
|
Water cooling |
|||||||||||||
CIP-WIP,>65℃ |
L/min |
100 |
|||||||||||||
Compressed air |
m³/min |
0.1 |
|||||||||||||
Defrost water (soaking) 0.15-0.2Mpa |
kg/batch |
270 |
300 |
350 |
400 |
1200 |
1500 |
2000 |
3000 |
4000 |
5000 |
7000 |
|||
Machine power |
W |
|
16 |
18 |
20 |
30 |
58 |
84 |
105 |
125 |
145 |
170 |
|||
Total weight |
Kg |
2600 |
2800 |
3500 |
4200 |
6000 |
7000 |
9000 |
11000 |
12000 |
15000 |
20000 |
|||
Dimension |
L |
mm |
2500 |
3000 |
3600 |
3800 |
5000 |
6400 |
6500 |
7400 |
8200 |
9200 |
9400 |
||
W |
mm |
1210 |
1200 |
1300 |
1500 |
1500 |
2300 |
2300, |
2300 |
2300 |
2400 |
2400 |
|||
H |
mm |
2700 |
2700 |
2800 |
2900 |
2800 |
3200 |
3400 |
3800 |
4000 |
4000 |
4500 |

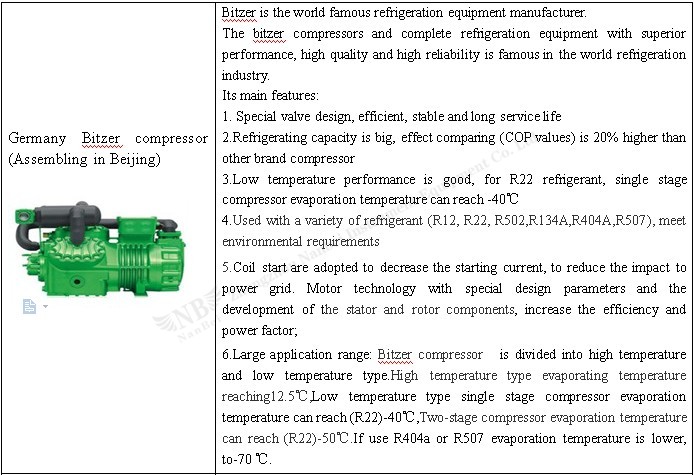

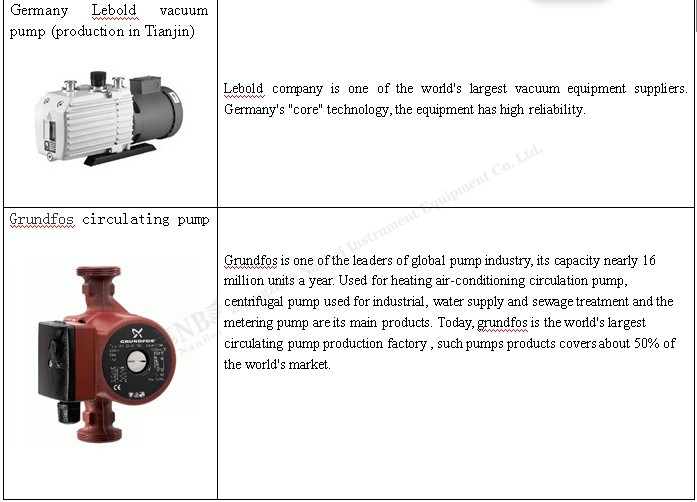

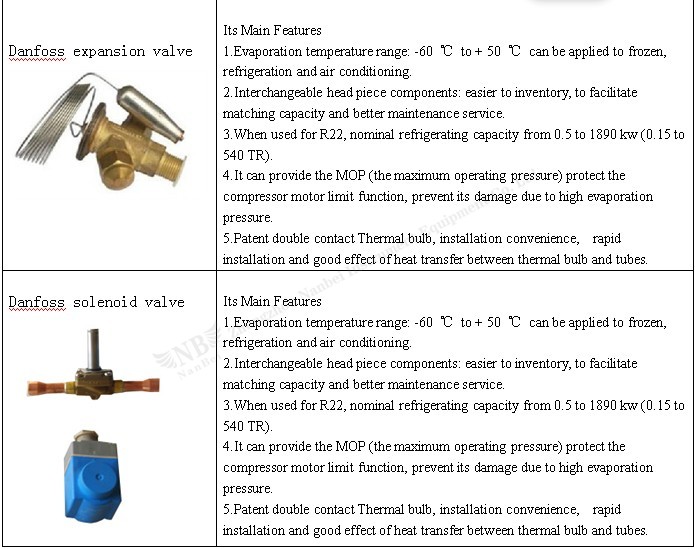

Main Accessaries
* Production Freeze Dryer
